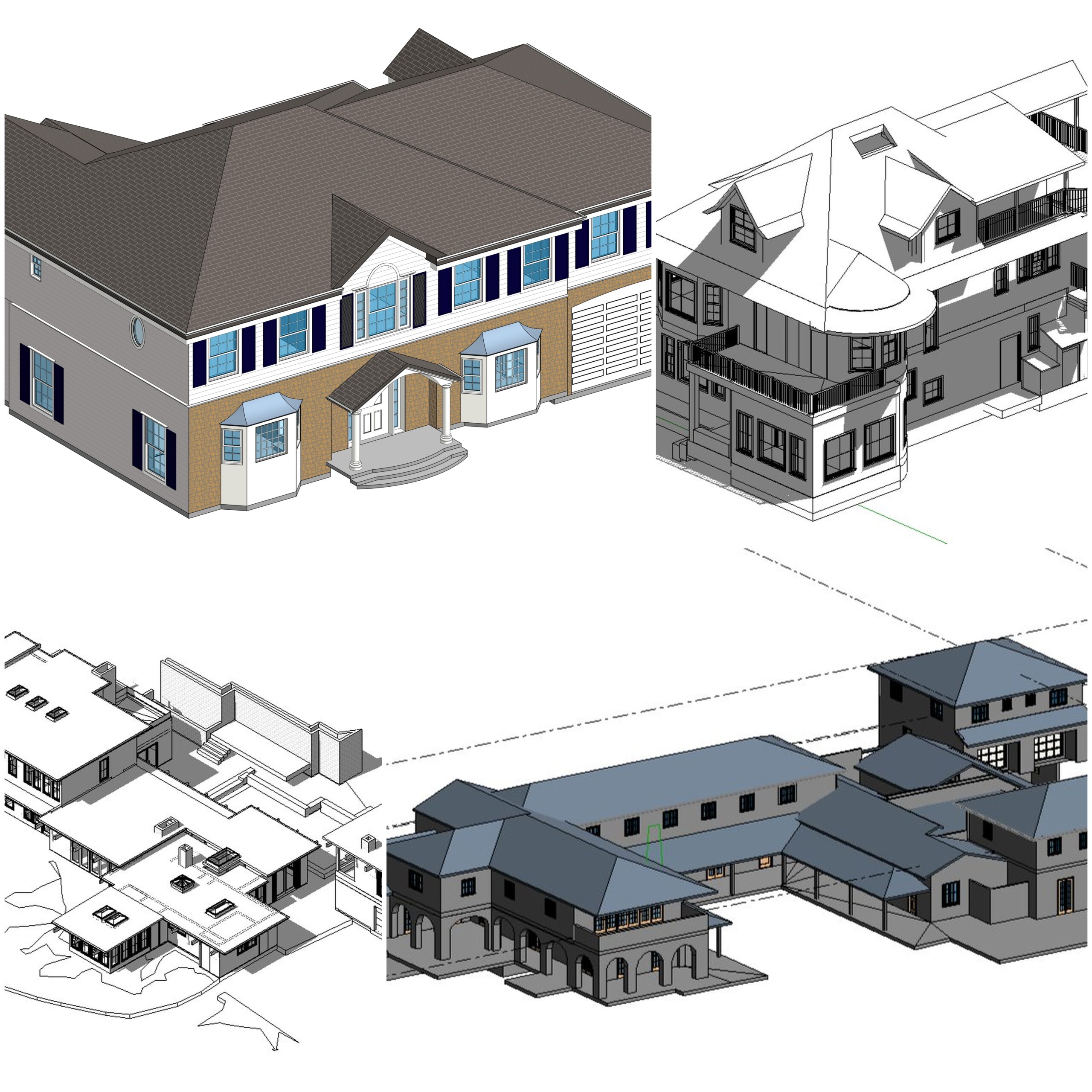

Allow us to prepare your asbuilt plans in CAD or BIM

We specialize in scanning for architects to prepare as-built plans that are affordable and accurate.

scanning buildings since 2008

BLK 2 GO is for large scale quick turnaround applications.

The Leica BLK 2 GO is our newest measuring tool that is now available to our clients upon requests or appropriate application. This equipment allows us to walk the site and gather valuable point cloud data in every direction while we are walking. This has an accuracy of half an inch.

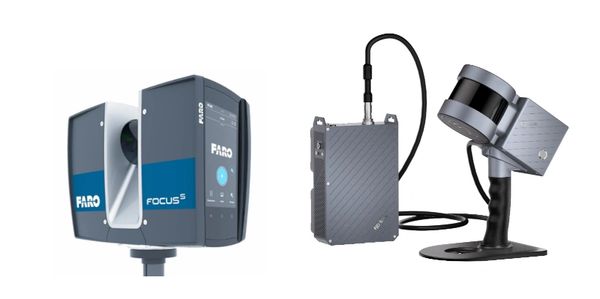

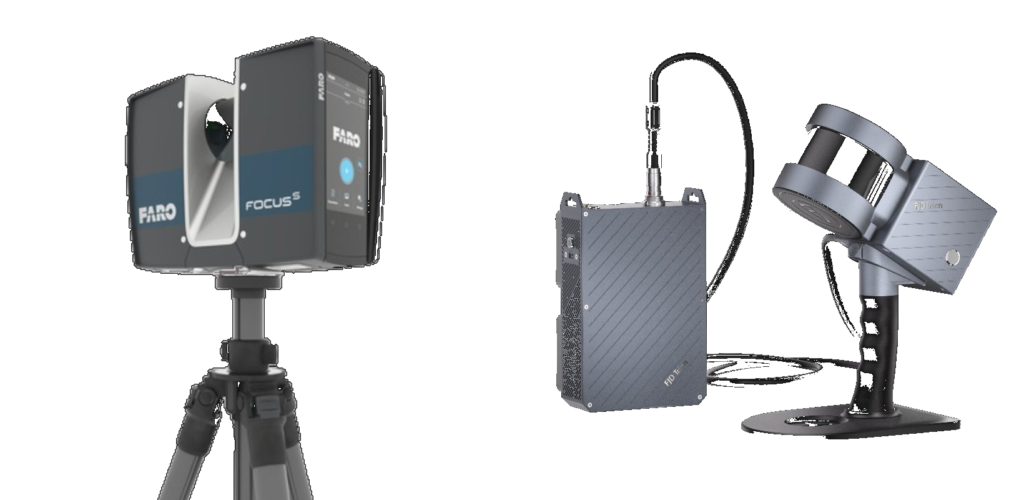

FARO SCANNER exterior and site plan scanner

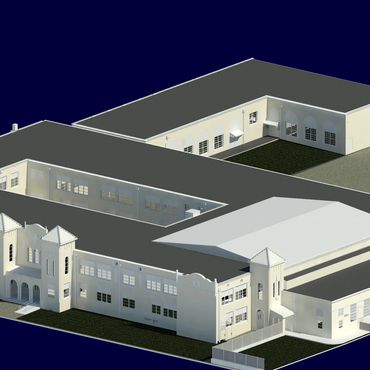

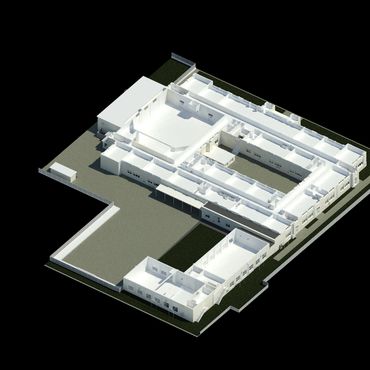

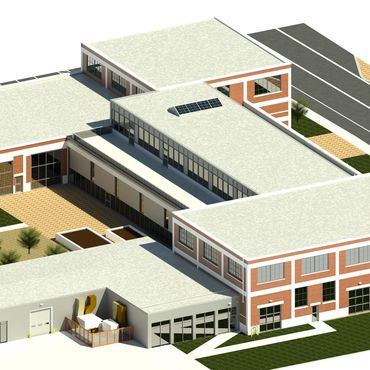

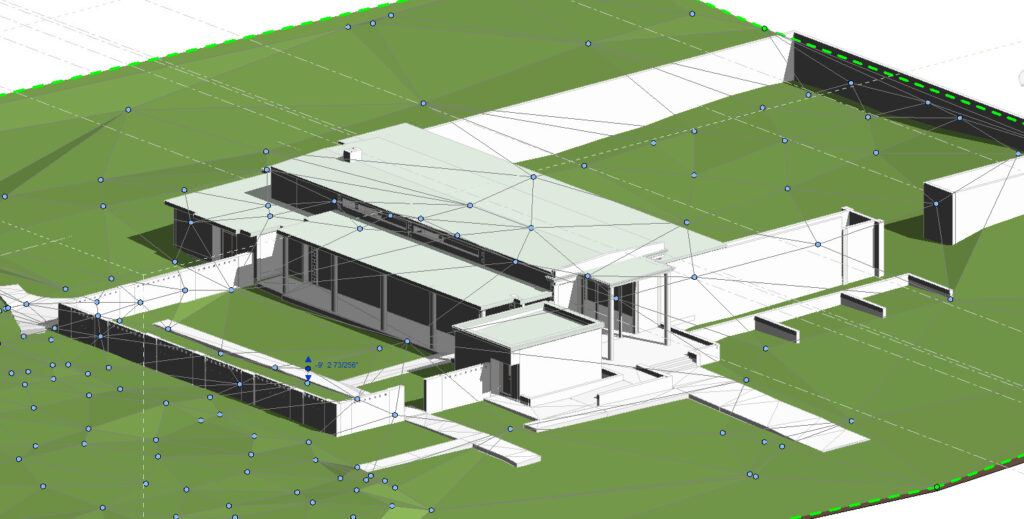

We use a Faro Focus 3D Laser Scanner to conduct our laser scanning services. We will provide you with a registered laser scan on a SD Card within one week (can vary). We can also use this file to produce orthographic JPEG images of the existing conditions. These can be traced in CAD to produce varied conditions or a fast turn around of a design concept. Autodesk Revit has numerous ways point clouds can be used to produce a model based on existing conditions. We offer this to clients as a superior way to get an accurate depiction of various plans.

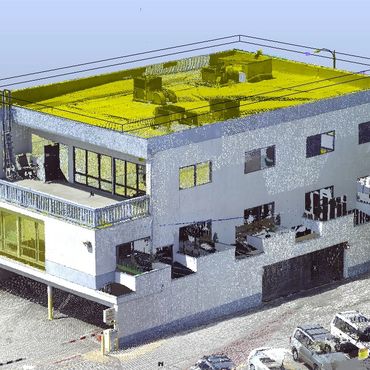

Base Built Service owns a FARO 120s and is used on all exterior projects such as the example of the multi story building.

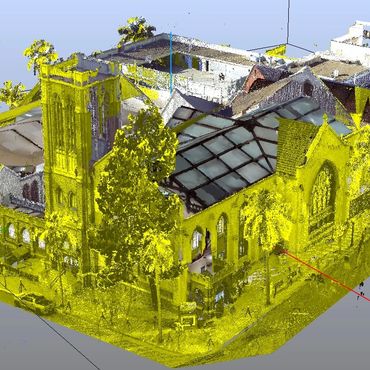

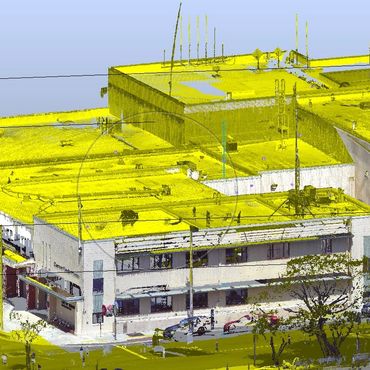

This is a series of 50 plus scans to produce this point cloud that is used to prepare 2D line drawings.

Leica BLK360 Scanner

The BLK360’s stated range of 196 ft (60m) and its ability to operate in direct sunlight makes it the ideal capture option for large open areas such as the outdoor parts of construction sites, large warehouses, shopping malls, stadiums, and factories, as well as facades of commercial buildings. This range has allowed the distance between captures to be as much as 50 feet in early tests, which will enable operators to quickly move the scanner through larger areas. This also has the ability to integrate with Matterport virtual reality capture system.

Base Built Services is a full service as-built measurement and CAD drafting firm, specializing in the creation of "As-Built" architectural floor plans and site plans using various onsite measuring tools. We always implement real-time measured lengths directly into onsite licensed CAD Measuring Software. This increases efficiency and produces an accurate floor plan quickly. As well as gathering floor plan information, we also gather elevation heights. This process produces a finished floor plan and quickly gets you to the next step of your project. Our serious approach coupled with modern tools and methodology, allows you to have a complete understanding of the space.

Base Built Services was founded on the premise that all architectural plans should be put together using high standards and accuracy. We provide an exceptional asbuilt service for architects so they can focus on designing and not on measuring. After seeing the standard process for putting together architectural plans using the paper-pencil method (low tech), and developing a plan using the computer-data system (high tech), we realized that measuring should be done no other way. Measuring with our data capture technique saves considerable time and ensures accuracy. We save our clients time and money by eliminating having to generate "as built" plans from scratch. We specialize in building existing condition plans for you.

Accurate saving you time and cutting your expense.

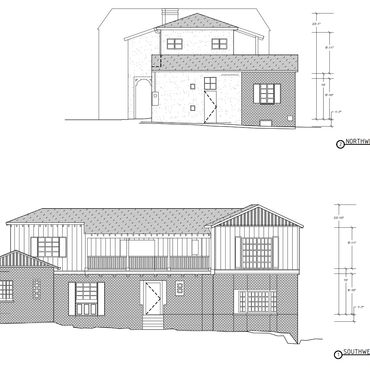

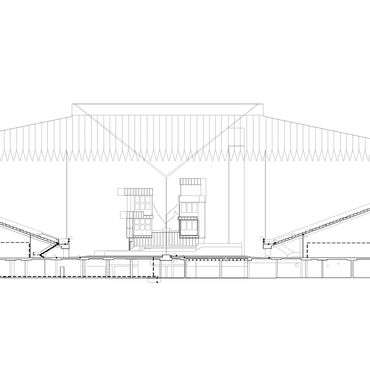

Ortho-photos are used to create this CAD of the exterior elevation from the registered scans. This is an example to show the range of the scanner.
